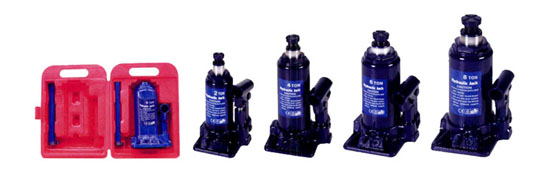

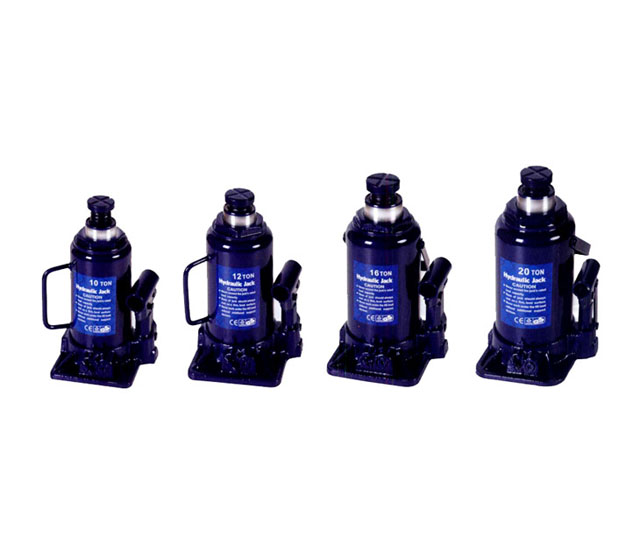

Name:JTxx03 Bottle Jack
Click to view larger
  Feature:

Shanghai Sinolift Equipment Co.,Ltd. is a professionalization enterprise which is professionally engaged in researching, developing and marketing. Company has abundant technology force, advanced craft, complete checkout equipments and reliable products. The European standard hydraulic bottle jacks which are manufactured by Sinolift Corp. have complete range of articles, reasonable price and reliable quality. Welcome wide customers to consult and purchase products.

  Specifications:
Model Order Model Lifting Capacity Min. height Lifting Height Adjust Height Max. Height Net Weight Gross Weight Measurement Quantiy/Case Quantiy/1x20"
ton mm mm mm mm kg kg cm pcs pcs
JT0203 T010302 2 158 90 60 308 2.3 25 52x25.5x19 10 6250
JT0303 T010303 3 195 125 60 380 3.3 28 46x26.5x22.5 8 4600
JT0503 T010305 5 197 125 80 402 4.4 29 37x27.5x22.5 6 3500
JT0803 T010308 8 205 125 80 410 5.4 24 29.5x27.5x22.5 4 2430
JT1003 T010310 10 205 125 80 410 6 26 30.5x29.5x24 4 2210
JT1203 T010312 12 215 125 80 420 7.2 16 30.5x16.5x24 2 1800
JT1503 T010315 15 225 140 80 445 8.3 19 31.5x17x24.5 2 1460
JT2003 T010320 20 244 145 80 469 11.5 24 34.5x19.5x27 2 1400
JT3003 T010330 30 285 180 / 465 14.6 31 37.5x19x31 2 970
JT5003 T010350 50 300 180 / 480 33 34 24x22x32 1 480
