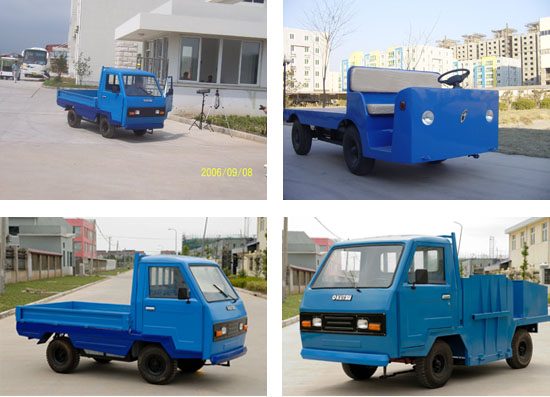

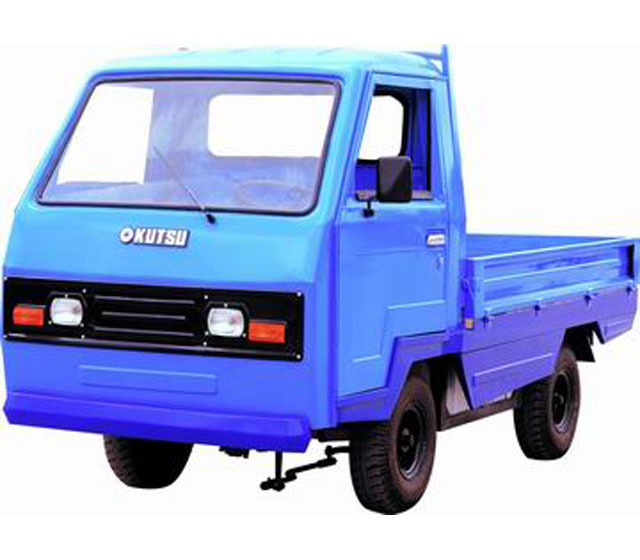

Name:BD(DB) Electric Platform Truck
Click to view larger
  Feature:

1. Electrical Braking.
2. Low Voltage Protection of Battery.
3. High Power Traction Motor.
4. Fast & smooth 5 step Acceleration.
5. Anti-plugging device.
6. Large size wheels, can be used on uneven ground.
7. Front & Rear Spring Damper system.


  Specifications:
Model * * * * BD2B ZD2 4DBM 5DBM BD3M
1DB 2DB-X 2DB 3DB
Rated Load Capacity (Kg) 1000 2000 2000 3000 2000 2000 4000 5000 3000
Platform Size (L*W) 1400*1000 1630*1150 2180*1350 2400*1350 2000*1400 2080*1400 2240*1400 2500*1400 2240*1400
Min. Height (mm) 560 680 700 820 700 820 820 720 820
Outline Size (L*W) 2400*1000 2650*1150 3540*1350 3695*1350 3360*1400 3800*1400 3540*1400 3820*1400 3540*1400
Front Wheel Thead (mm) 835 917 1060 1070 1060 1060 1070 1070 1070
Rear Wheel Thead (mm) 850 981 1085 1115 1085 1115 1115 1115 1115
Wheel Base (mm) 1135 1370 1800 1900 1560 1650 1900 2185 1900
Ground Clearance (mm) 100 120 120 140 120 120 140 120 140
Drive Speed without Load (KM/h) 10 15 12 12 18 18 18 18 18
Drive Speed with Load (KM/h) 8 12 10 10 15 15 15 11.5 15
Min. Turning Radius (mm) 3000 3400 4000 4500 3500 3500 3900 4100 3900
Parking Brake distance (M) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max. Gradeability (%*m) 5*12 5*12 5*12 5*12 10*12 10*12 5*12 5*12 10*12
Driving Motor (KW) 1.35 2.5 2.5 5 3 3 5 6.3 5
Driving Motor Rated Current (A) 78 78 78 139 83 83 139 173 139
Battery Voltage (V) 24 40 40 48 48 48 48 48 48
Battery Capacity (AH/5hr) 250 250 250 308 250 250 330 440 308
Tire 500-8 600-9 700-9 700-12 700-9 700-9 700-12 700-9 700-12
Controller KP2-150 KP2-150 KP2-150 QPK-41/48N KP2-150 KP2-150 QPK-41/48N QPK-41/48N QPK-41/48N
General Transmission Ratio. 7.51 7.51 7.51 11.32 11.69 11.32 11.32 11.32 11.32

Remark:
1. the "S" is meaning of another new design; the "X" is meaning of Narrow type.
2. the "M" is meaning of with Closed Cabin;the "CM" is meaning of with Half Closed Cabin.
3. the "C" is meaning of with long platform in the side; the "F" is meaning of with Calash Cabin.
4. “SHC” is meaning of with scissor lifting device; the “ZD” is meaning of with Load and Unload device.
