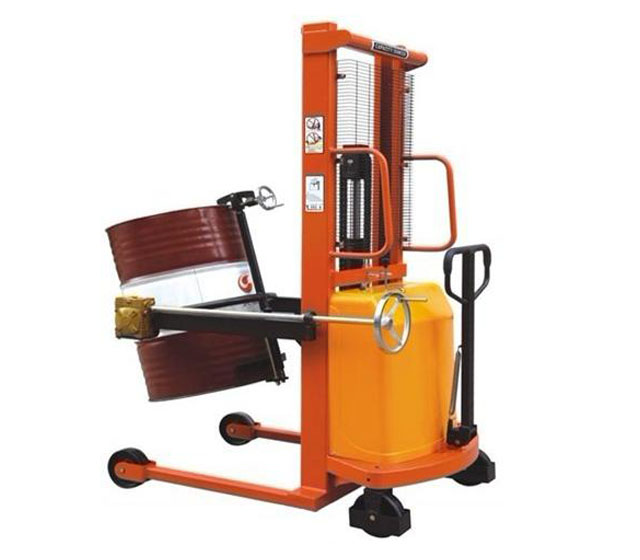

Name:COD0.35B Electric Drum Handler
Click to view larger
  Feature:
1. Specially designed for lifting, rotating or stacking drums.
2. No need for the operator to touch the drum to raise, transport and rotate.
3. Can be operated with hand pump and electric power for lifting.
4. Can be designed with all electric operation including lifting, rotating and driving.
5. Swivel casters for easy movement and steering.
6. All models have all welded steel construction for durability.

This drum handling tool can be used for moving and handling drums from 300kg to 400kg
  Specifications:
Model COD0.35B
Load Capacity kg 350
Lifting height mm 1425
Overall length (A) mm 1190
Overall width (B) mm 890
Overall Height (H1) mm 2020
Drum size mm ¢580X900
Load Wheel mm ¢180X50
Lifting Motor 1.5KW
Battery 12V/120AH
Charger 12V/15A
Net Weight kg 160
