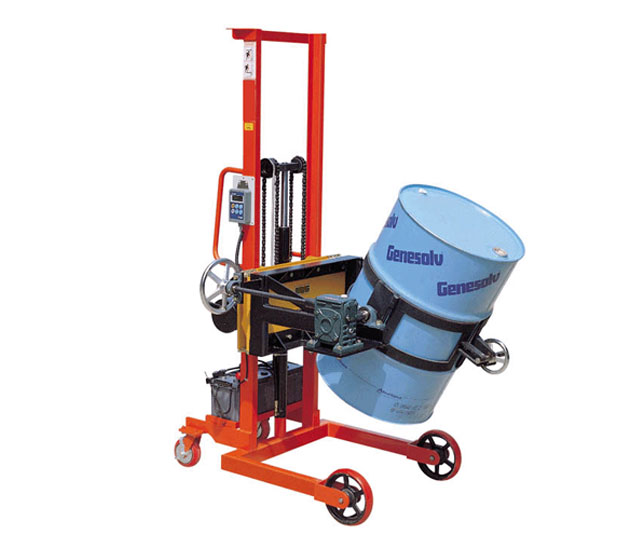

Name:CDS0.3 Electric Drum Handler with scale
Click to view larger
  Feature:
Use for moving, loading and tilting liquid such as dyes, paint, adhesive, oil in chemical industry, food workshop.
  Specifications:
Model CDS0.3
Item Name DRUM LIFTER WITH SCALE
Type Electric & Portable type
Capacity 300 kgs.
Accuracy +/- 1/1,000
Display 0.1 kg Unit
Drum size Dia.600mm x H 900mm
Drum Lifting strock 1500mm
Lifting & Tilting Power Hydraulic pump &Worm gear box operated by motor
Load cell 2-point Load cell
Power supply for battery Charger 240V x 50Hz. X 1 ph
Battery Charger Supplier’s Scope
Quantity 1 Set
