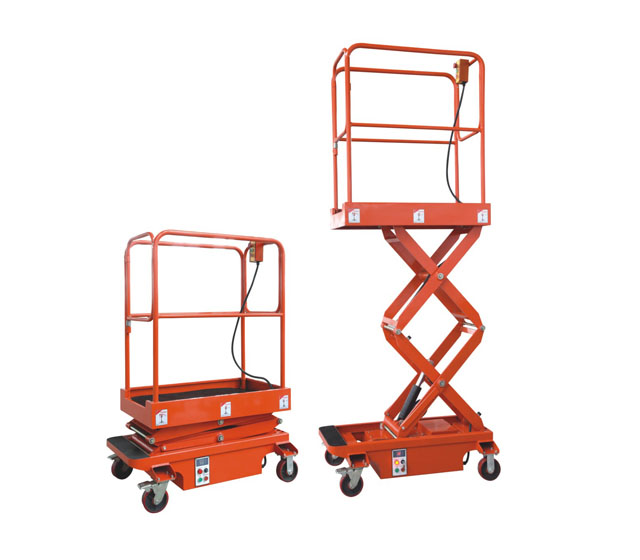

Name:SJY (MINI) Mini scissors access aerial work platform
Click to view larger
  Feature:
Mini Mobile Scissor Lift Access Platform
Code: SJY0.3-1.7


Access Platforms-1.7m aerial platform lift height.

Electric compact aerial scissor lift work access platforms offer an economical solution for 1 person (240kg max lift capacity), when working at height.

1. The SJY0.3-1.7 access platforms models allow a 1.7M maximum platform lift height, with a working height of 3.73M.
2. Supplied with intergrated charger with a built in battery charge indicator.
3. Complete with levelling indicator and outriggers.
4. Emergency down and stop buttons.
5. Supplied with 12 month LOLER certificate and CE certified.
6. This unit will pass through a standard door frame.
7. Access platforms are ideal equipment for maintenance work in warehouses, shopping centers, hospitals, schools and other areas, were health and safety are even more important.
8. More versatile than a mobile tower as its height can be adjusted with the touch of a button.
  Specifications:
Specifications SJY0.3-1.7(mini) SJY0.3-3(mini)
Max.Platform Height mm 1700 3000
Min.Platform Height mm 520 630
Platform Size (LxWxH) mm 1000x530 1150x600
Platform Extend Length mm / /
Lift Rated Capacity kg 300 300
Platform Extend Capacity kg
Support leg Spread Size mm // //
Elevating Time s 10 33
Lowering Time s 7 30
Lift Motor V/kw 12/0.8 12/0.8
Charger V/A 12/15A 12/15A
Votagle V // //
Overall Length mm 1140 1280
Overall Width mm 700 740
Overall Height mm 1620 1650
Service Weight kg 280 360
