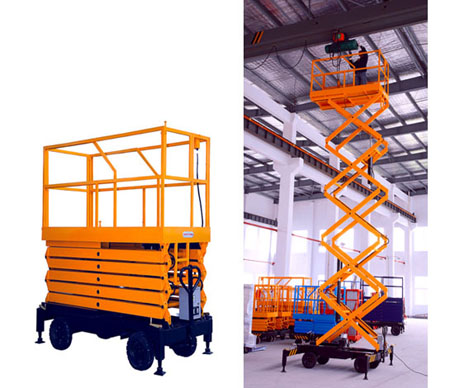

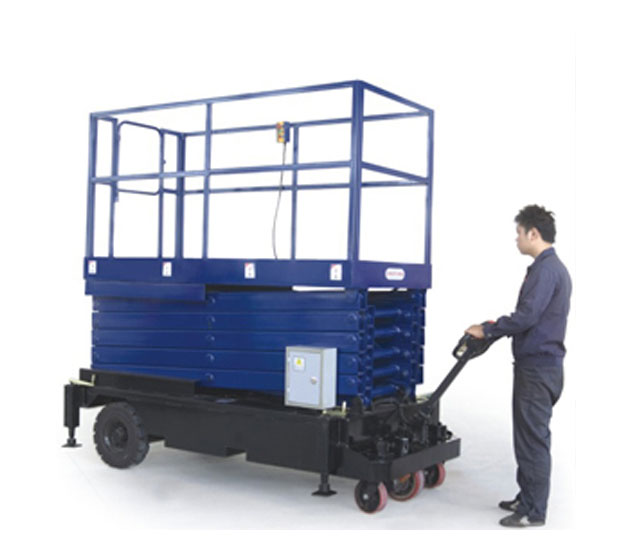

Name:SJY (II) Scissors access aerial work platform
Click to view larger
  Feature:

SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place, could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on. Moreover, because of its big solid tire, it could work perfectly in rough ground.

1. DC motor and driving systems.
2. With safety-falling equipment.
4. Big solid tire.


  Specifications:
Specifications SJY0.3-7.5 (II) SJY0.3-9 (II)
Max.Platform Height mm 7500 9000
Min.Platform Height mm 1300 1550
Platform Size (LxWxH) mm 2180x1000x1100 2180x1000x1100
Platform Extend Length mm 700 900
Lift Rated Capacity kg 300 300
Platform Extend Capacity kg 100 100
Support leg Spread Size mm 2700x2200 2700x2200
Elevating Time s 62 62
Lowering Time s // //
Lift Motor V/kw 1.5 1.5
Charger V/A // //
Votagle V 220 220
Overall Length mm 2270 2270
Overall Width mm 1250 1250
Overall Height mm 1300 1550
Service Weight kg 1200 1350
