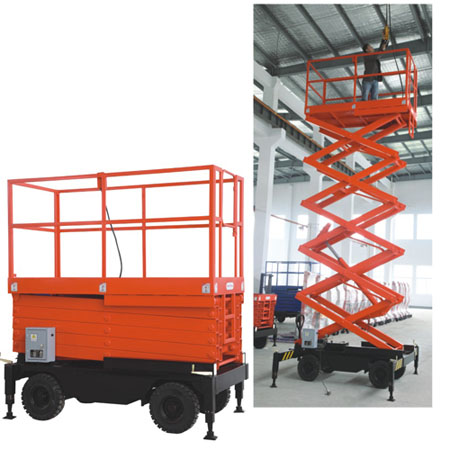

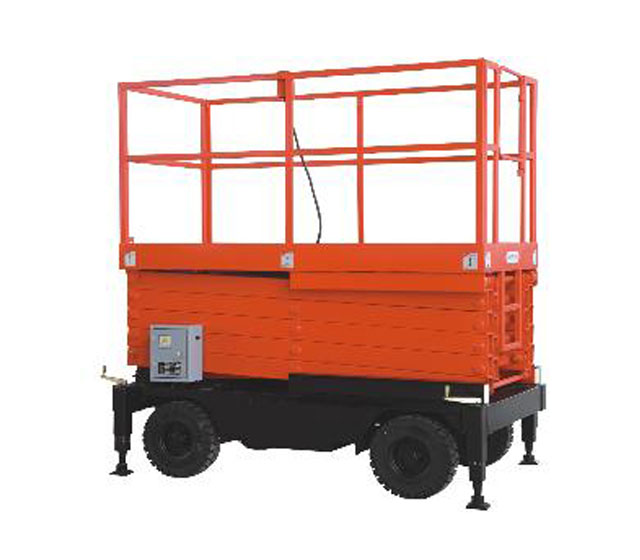

Name:SJY (III) Scissors access aerial work platform
Click to view larger
  Feature:

SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place, could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on. Moreover, because of its big solid tire, it could work perfectly in rough ground.

1. DC motor and driving systems.
2. With safety-falling equipment.
3. Big solid tire.


  Specifications:
Specifications SJY0.3-6 (III) SJY0.5-6 (III) SJY0.5-7.5 (III) SJY0.5-9 (III) SJY0.5-11 (III)
Max.Platform Height mm 6000 6000 7500 9000 1100
Min.Platform Height mm 1050 1350 1450 1650 1800
Platform Size (LxWxH) mm 1780×840×1100 1780x840x1100 2180x1000x1100 2180x1000x1100 2200x1100x1100
Platform Extend Length mm // // // // //
Lift Rated Capacity kg 300 500
Platform Extend Capacity kg // // // // //
Support leg Spread Size mm 2500×2300 2300×1700 2700x2200 2700x2200 3100x2200
Elevating Time s 46 59 77 77 77
Lowering Time s // // // // //
Lift Motor V/kw 1.5 2.2 2.2 2.2 2.2
Charger V/A // // // // //
Votagle V 220 380 380 380 380
Overall Length mm 1820 1820 2270 2270 2270
Overall Width mm 1060 1060 1250 1250 1450
Overall Height mm 1060 1350 1450 1650 1800
Service Weight kg 850 950 1350 1600 1800
