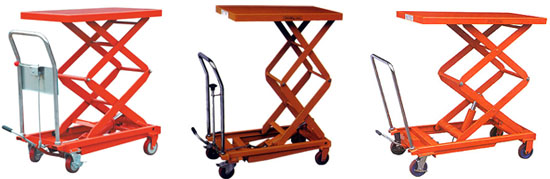

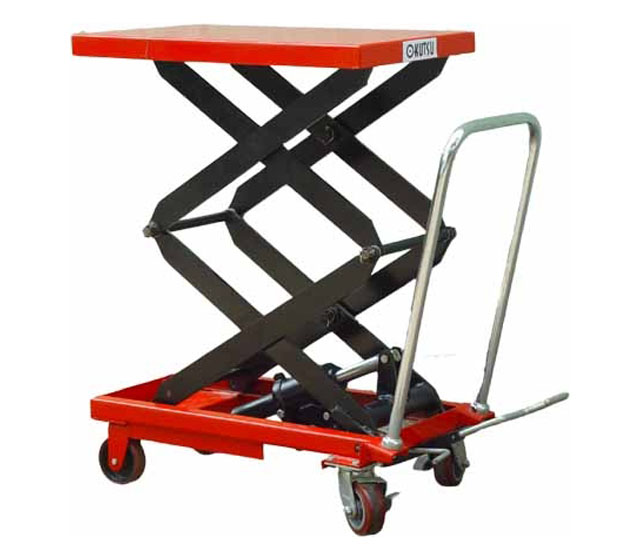

Name:CYTS Manual Table Lift
Click to view larger
  Feature:

1. Valuable material handling for use as a feeding table on assembly line.
2. Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
6. Over load by-pass valve protects operator and pump.
7. Option: chrome plated handle, painted handle, folding handle&solid handle.


  Specifications:
MODEL CYT100S CYT350S CYT350SD CYT750S CYT1000SD
Capacity (kg) 1000 350 350 750 1000
Lifting height (mm) 1260 1300 1300 1500 1700
Lowered height (mm) 330 345 345 450 500
Table size (mm) 700X450X35 905X512X55 905X512X55 1220X610X55 1220X610X55
Weight (kg) 52 113 110 185 240
Remark *S=double scissors *D=with fission Cylinder
