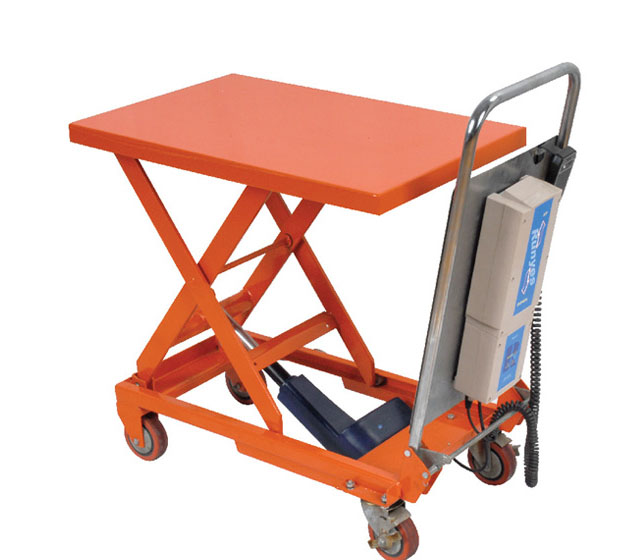

Name:CYTE Electric Table Lift
Click to view larger
  Feature:
1. All welded steel frame,durable and reliable.
2. AC,DC motor or foot pump is available.
3. Deal for portable work station.
4. Integrated power pack,heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve.
5. Special sizes are available upon request.
  Specifications:
Model CYTE15 CYTE25
Load Capacity kg 150 250
Lowest height mm 210 380
Max. Height mm 740 900
Table Dimension mm 740x450 820x500
Total Length mm 920 1090
Height mm 875 970
Packing Dimensions mm 820x460x280 900x520x380
Net Weight kg 42 94
Qty in one 20" container pcs 186 140
