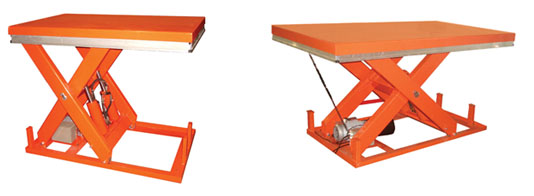

Name:HW Electric static table lift
Click to view larger
  Feature:

Standard Safety Features:

1. Upper platform fitted with aluminum safety bar preventing descent on contact with obstructions;
2. Low-tention (24V) control box with up-down buttons;
3. Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed;
4. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of horse burst;
5. Safety clearance between scissors to prevent trapping during operation.

Other Standard Features:

1. Self lubricating bushings on pivot points;
2. Removable lifting eye to facilitate handling and lift table installation.


  Specifications:
Model HW1001 HW1002 HW2001 HW2002 HW4001 HW4002 HW5001 HW5002
Rated Capacity kg 1000 1000 2000 2000 4000 4000 5000 5000
Min.Height of Table mm 205 205 230 230 240 240 500 500
Max.Height of Table mm 1000 1000 1050 1050 1100 1100 1600 2000
Table Dimensions mm 820x1300 1000x1600 850x1300 1000x1600 1200x1700 1200x2000 1220×2440 1500x2500
Weight kg 160 186 235 268 375 405 520 590
Packing Dimensions mm 1310x820x210 1610x1010x210 1310x860x240 1610x1010x240 1710x1210x250 2010x1210x250 2450x1230x280 2510x1510x280
