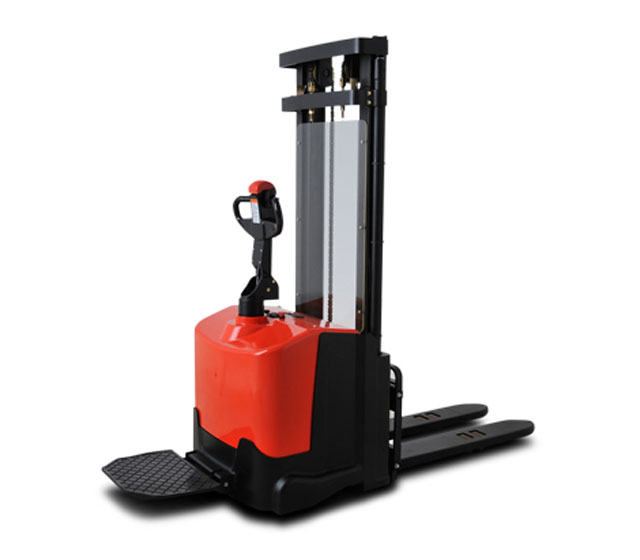

Name：CDD10 CDD12 (AC) Forkover power stacker
	Click to view larger

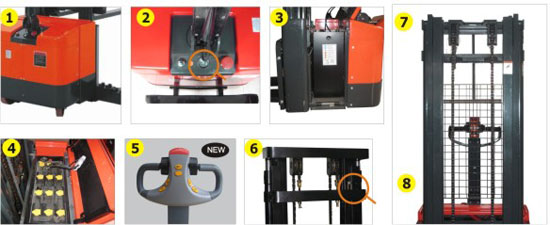

Feature：

1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
6. limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.

Specifications：

	Model					CDD10	CDD12
1	characteristics		capacity		kg	1000	1200
2		M	load center		mm	600
3			operator type			walkie (rider option)
4			EPS (electric power steering)			standard equipped
5	specifications	A	optional lifting height		mm	3000/3300/3600
6		B	lowered height of fork		mm	85
7		W	overall fork width		mm	540(maximum 650 mm)
8			fork length		mm	1150
9			fork width		mm	185
10			minim turning radius		mm	1482
11		C	minim aisle width		mm	2182
12			minim ground clearance		mm	30
13	performance		maximum traveling speed	laden	Km/h	3
14			maximum traveling speed	unladen	Km/h	3.5
15			maximum lifting speed	laden	m/s	0.13
16			maximum lifting speed	unladen	m/s	0.23
17			maximum lowering speed	laden	m/s	0.13
18			maximum lowering speed	unladen	m/s	0.23
19			gradeability	laden	%	5
20			gradeability	unladen	%	7
21	weight		serv weight without battery (3m standard)		kg	924
22	weight		serv weight with battery (3m standard)		kg	1134
23	chassis	D	overall length		mm	1875
24		F	overall width		mm	810
25		L	overall rear height		mm	1470
26		R	rear body length		mm	765
27		J	real body width		mm	810
28		K	rear body height		mm	850
29		N	handle width		mm	430
30		G	mast extend height(3m/3.3m/3.6m/4m)		mm	3500/3800/4100
31		H	mast lower height(3m/3.3m/3.6m/4m)		mm	1980/2135/2335
32	wheel		wheel type front/rear			PU
33			wheels			1xDriven wheel,2xUniversal wheel, 4xFront wheel
34			dimension of driven wheel		mm	248*75
35			dimension of load wheel		mm	84*58
36			dimension of universal wheel		mm	115x55
37		I	wheel base		mm	1307
38	driving system		brake type			electromagnetic
39			travelling motor		kw	1.5 AC
40			lifting motor		kw	3.0 DC
41			voltage		v	24v
42			battery capacity/type		Ah	135Ah/maintenance free battery	210Ah/industry
43			maximum battery box size(LWH)		mm	650x200x575
44			control system			CURTLS 1230-2402

Right reserved for technical changes and improvements.
