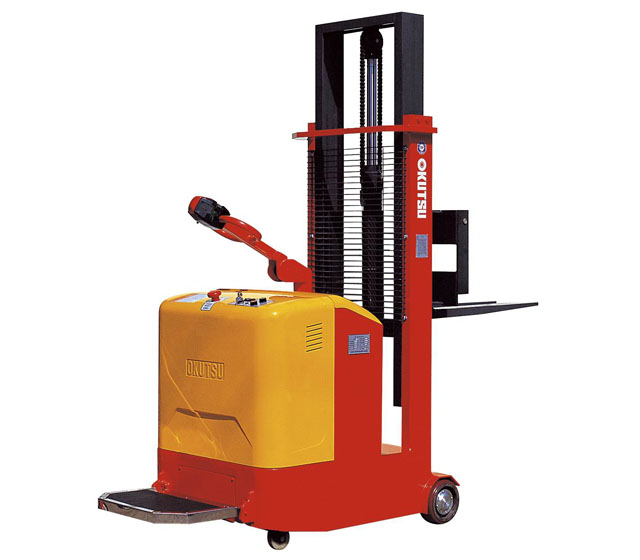

Name:CDD1.0A(new) Counterbalanced Stacker
Click to view larger
  Feature:
1. Electric lift/lower controls in handle with pressure compensated valve for constant lowering in all conditions.
2. State-of-the-art transistor controller requires no contactors to control separately excited drive motor.
3. Drive motor controller is fully programmable with service tool handset.
4. Travel speed and direction is controlled by ergonomically correct handle and operable with either hand.
5. Monitors load weight and automatically adjusts torsion bar suspension mechanism to provide optimum loading on drive tire to reduce steering effort and provide proper braking traction.
6. Double reduction 22 to 1 gear ratio with helical and spur-cut gears for quiet operation and smooth power transfer.
7. Drum brake is mounted on drive motor armature shaft to greatly multiply braking power through the double-reduction transmission.
  Specifications:
Model CDD1.0A-16 CDD1.0A-25 CDD1.0A-30 CDD1.0A-45
Load Capacity(Kg) 1000 1000 1000 1000
Lifting Height ( mm ) *2 1600 2500 3000 4500
Load Center(mm) 500 500 500 45
Drive Wheel(mm) 215X 75 215X 75 215X 75 260X 75
Balanced Wheel(mm) 125X50 125X50 125X50 125X50
Overall Length (without pedal-plate) (mm) 2600 2600 2600 2600
Overall Width(mm) 840 840 840 840
Max. Width of forks ( mm ) *1 g 670 670 760
Forks Size(mm) 1070X100 1070X100 1070X100 800X100
Turning Radius (without Pedal-plate)(mm) 1550 1550 1550 1535
Driving Speed (Full-Laded/Un-Loaded)(km/h) 4.0~5.0 4.0~5.0 4.0~5.0 4.0 ~ 6.5
Gradebility(%) 8 8 8 5
Brake Electric -magneti
Drive Motor(kw) 1.2 1.2 1.2 1.5
Lifting Motor(Kw) 2 2 2 1.4
Battery(V/Ah) 24V/210Ah 24V/210Ah 24V/210Ah 24V/210Ah
Service Weight(Kg) ~1700 ~1755 ~1770 ~ 1820

Remark:
1. "*1" mean the forks can be flexible.
2. "2" mean the lifting height can be options: 3500mm,4000mm and 5000mm with dual or triplex mast.
3. products and specifications are subject to change without prior notice.
