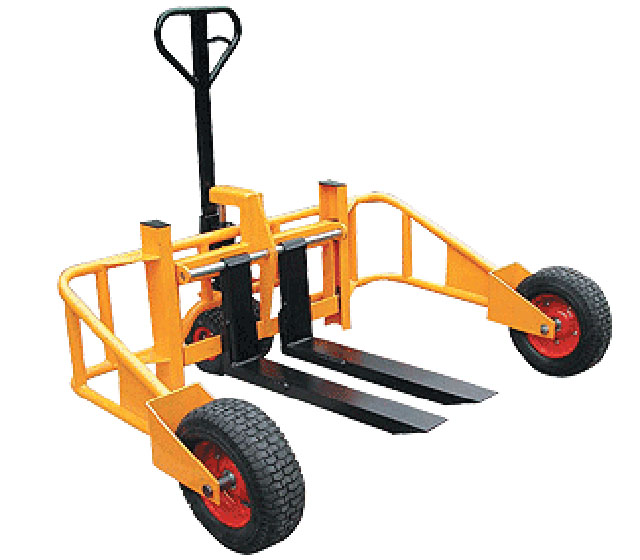

Name:NPT Rough Terrain Pallet Truck
Click to view larger

1. Entry/Exit Roller, more freely travel.
2. Turning around at an angle of 130 degree will not lead to any overturning.
3. Rocker arm assembly is made of 45# steel forging.
4. All joint pins are heat treated and coated with chromium or nickel.
5. Good looking & excellent appearance.
6. Both pumping piston and lifting piston have been tested against salt corrosion for 120 hours.
7. No deformation when under heavy loads for a long time.

Model TLD20
Capacity (kg) 2000
Lowered fork height h1(mm) 85
Tootal lift height h2(mm) 200
Fork length L(mm) 1150/1220
Width over the forks W(mm) 570,705
Steering wheel A(mm) Φ 180/ Φ 200
Fork wheel B(mm) Φ 74
Self weight (kg) 125~130
