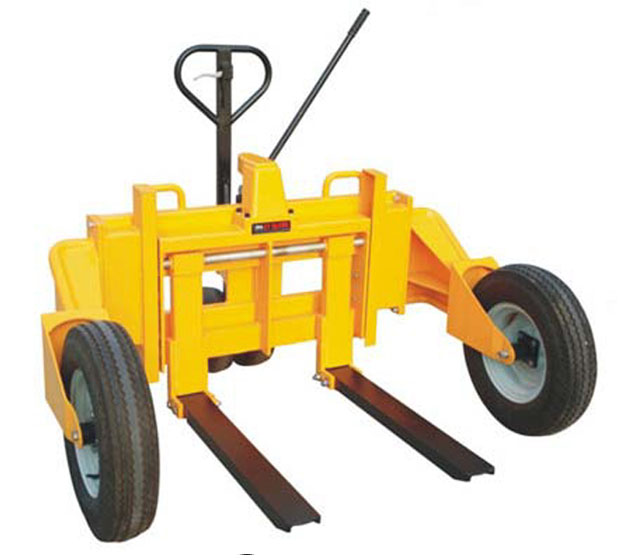

Name:RTT Rough Terrain Pallet Truck
Click to view larger

RTT12 Rough Terrain Truck
Code: RTT12

1200kg capacity adjustable forks hand pallet truck
Ideal for use on rough surfaces such as building sites, Garden centre and any external applications.

1200 kg capacity
1. Fitted with Pneumatic tyres for use on undulating surfaces.
2. Powder coated heavy duty steel frame.
3. Fitted with adjustable 860mm long forks.
4. lower down to a Minimum fork height of 52mm.
5. Ideal for open and closed pallets.
6. Hand release trigger.
7. Easy to maneuver with 210 degrees turning radius.
8. Low maintenance pump unit.
9. Hand release trigger to control the rate of descent.

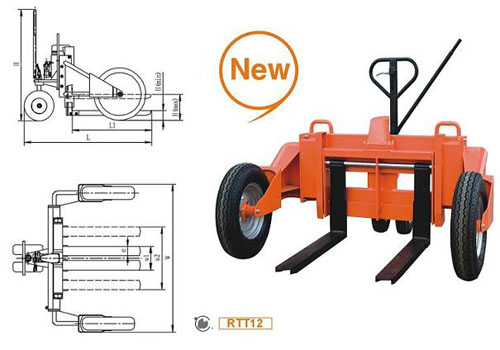

Model RTT12
Capacity Q kg 1200
Fork Length L1 mm 860
Fork width e mm 100
Adjustable Fork Width w1-w2 mm 212-735
Max.Fork Height H (Max) mm 223
Min.Fork Height H (Min) mm 53
Max.Pump Stroke mm 170
Overall Size LxWxH mm 1375x1605x1200
Front Wheel Dia.x Width mm 550x132
Rear Wheel Dia.x Width mm 300x80
Width inside the front wheel mm 1277
Net Weight kg 235
Minimum Qty. n 7 purchase
