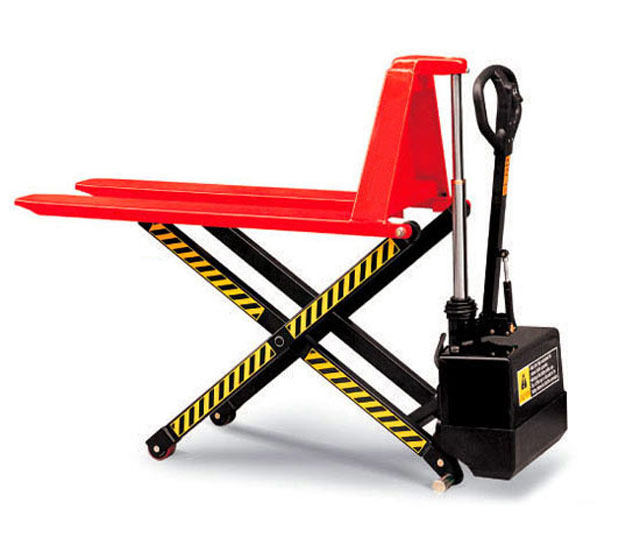

Name:NPHD Semi-Electric High Lift Pallet Truck
Click to view larger
  Feature:
1. Powered by 12 voltage battery, driven by a good effective pump station.
2. Used as both a work table and pallet truck.
3. 10-12 seconds pumping from the bottom to the top.
4. Safety overload system prevents the truck from being used beyond its rated capacity.
5. The handle automatically returns to its upright position when released.
6. Lifting motor power is 1.1kw.
7. Conforms to EN1757-4.
  Specifications:
Model NPHD1000 NPHD1500
Capacity (kg) 1000 1500
Lowest Fork Height (mm) 85 85
Max. Fork Height (mm) 800 800
Fork Length X Fork Width (mm) 1140X520 or 1140X680 1100X520 or 1100X680
Diameter of front wheel (mm) 75X50 75X50
Diameter of Rear Wheel (mm) 150X50 150X50
Lifting time in Full Range(s) 10/12 18
Size of Fork (mm) 162X50 162X50
Descending Speed (m/s) <0.1 <0.1
Motor Working Voltage (v) 12 12
Battery Volgage (v) 12 12
Electricity Volume (A/h) 63 63
Working pressure of Pump Station (Mpa) 15 21
Imput/output Voltage of Charger (v) 200-240/12 115-230/12
Service Weight (kg) 118 / 128 145 / 155
Max. Charging Current of Charger (A) 10 10
Packing Details 4pcs/crate, crate size:193X60X72, 108pcs/20" 4pcs/crate, crate size:193X76X72, 84pcs/20"

Remark:
1. Fork length can be changing with spercial requirments.
