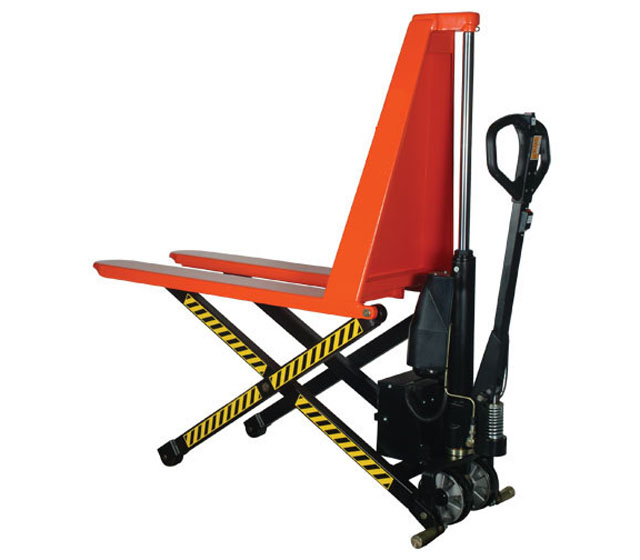

Name:NPHE Full Electric High Lift Pallet Truck
Click to view larger
  Feature:
1.Lifting by both manual and electric.
2.Lowering by manual.
3.Built-out battery and charger resulting in a low center of gravity and excellent manoeuvrability.
4.Conforms to EN1757-4 and EN1175.
  Specifications:
Model NPHE1000 NPHE1500
Capacity (kg) 1000 1500
Lowest Fork Height (mm) 85 85
Max. Fork Height (mm) 800 800
Fork Length X Fork Width (mm) 1140X520 or 1140X680 1100X520 or 1100X680
Diameter of front wheel (mm) ?75X50 ?75X50
Diameter of Rear Wheel (mm) ?150X50 ?150X50
Lifting time in Full Range(s) 10/12 18
Size of Fork (mm) 162X50 162X50
Descending Speed (m/s) <0.1 <0.1
Motor Working Voltage (v) 12 12
Battery Volgage (v) 12 12
Electricity Volume (A/h) 63 63
Working pressure of Pump Station (Mpa) 15 21
Imput/output Voltage of Charger (v) 200-240/12 115-230/12
Service Weight (kg) 118 / 128 145 / 155
Max. Charging Current of Charger (A) 10 10
Packing Details 4pcs/crate, crate size:193X60X72, 108pcs/20" 4pcs/crate, crate size:193X76X72, 84pcs/20"
