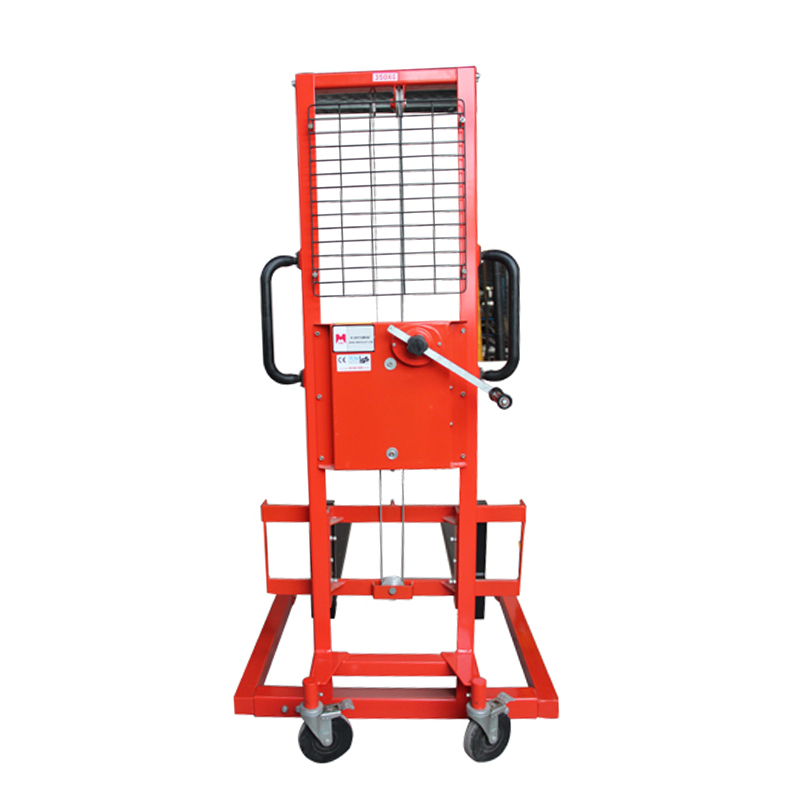

Name:CYL Hand Winch Stacker
Click to view larger
  Feature:
MINI WINCH STACKER CYL350 CYL350W

1.Simple, easy way to lift, lower and transport heavy loads with minimum effort.

Features adjustable width forks and outrigger legs.
Low effort hand winch equipped with automatic brake systems and adjustable length handle.
Swivel casters feature foot brake to prevent movement.

Optional Steel Platform - Solid steel construction, Fits over forks. Easily removed.
Optional High strength anchor chain – Stronger, self-locking system.
  Specifications:
MODLE   CYL350 CYL350S CYL350W
Capacity kg 350 350 350
Load Center mm 300 300 400
Lifting Height mm 90-1500 90-1500 76-1500
Turning Radius mm 790
Circles No. of Handle Rotating   45
Handle Resistance N 70
Fork Length mm 600 600 900
Fork Width mm 60 60 80
Fork Thickness mm 30 30 45
Overall Length mm 960 960 1275
Overall Width mm 635 635 1390
Overall Height mm 1855 1855 1855
Fork Width mm 140~620 140~620 170~760
Outrigger Height mm 80 80 80
Outrigger Outside Width mm 490 490 860~1270
Load Wheel mm Ф80X55 Ф80X55 Ф80X55
Steering Wheel mm Ф150X40 Ф150X40 Ф150X40
Overall Net. weight kg 75 78 115
