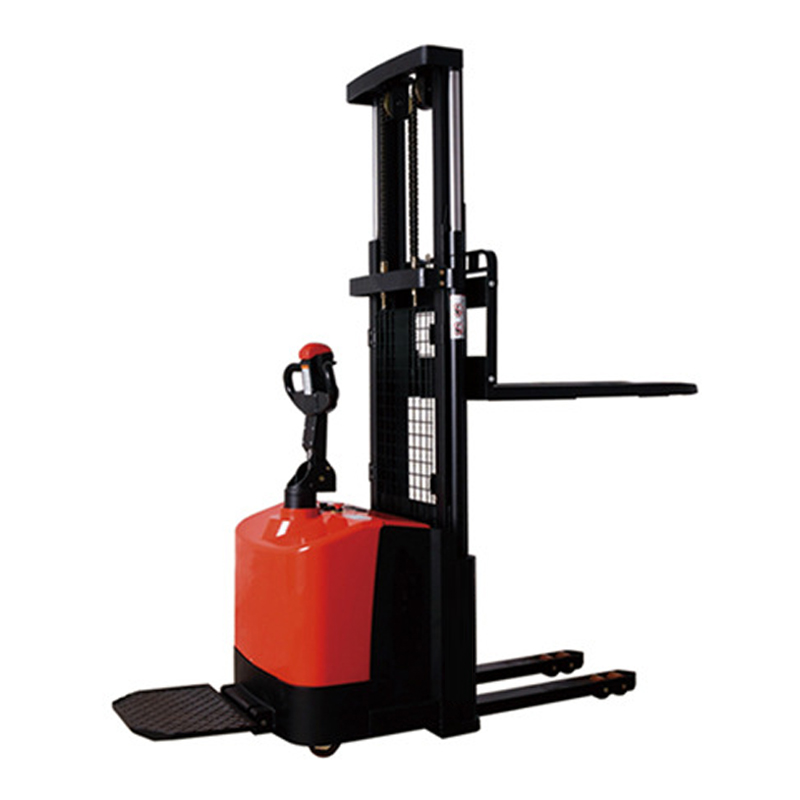

Name:CDD12-030 power stacker
Click to view larger
  Feature:
Advantages:
Mechanial Steering—Economic, comfortable, more reliable.
AC Driving Lystem—Low noise, quiet, without carbon brush
and free maintenance.
Eletric Lifting—Rapid,efficient,electricity limit switch is STD.
Short Wheelbase—Small turning radius,suitable for narrow space.
Energy conservation—Save energy,every day only 5KWh.
AC Controller—Stepless,strong power,multiple automatic protection.
Intelligent Control—Regenerative braking,automatic energy recovery.
  Specifications:
  Feature Unit
1 Model   CDD12
2 Configuration No.   030
3 Type   Narrow legs
4 Mast type    2-Stage STD
5 Load capacity kg 1200
6 Load center mm 600
7 Wheel base mm 1270
8 Operating type    Walkie  /  Stand On
  Wheels
9 Wheels type   PU
10 Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
  1/2/4
  Dimension
11 Standard lift height mm 3000
12 Lowered fork height mm 85
13 Fork size(length/width/thickness) mm 1150/185/55
14 Overall length mm 1993/2413
15 Overall width mm 812
16 Max extend height mm 3500
17 Mast lowered height mm 1980
18 Min.Turning radius mm 1525/1935
19 Min.Aisle width for pallets 800×1200 mm 2130/2520
20 Min.Aisle width for pallets 1000×1200 mm 2160/2540
21 Min.ground clearance mm 30
  Performance
22 Travel speed,laden/unladen km/h 5/5
23 Lift speed,laden/unladen mm/s 130/230
24 Lowering speed,laden/unladen mm/s 130/230
25 Gradeability,laden/unladen % 5/7
  Electrical configuration
26 Drive motor / Lift motor /Steering motor  KW AC1.5/DC3/DC0.15
27 Battery voltage V 24
28 Battery capacity Ah 210
29 Brake   Electromagnetic / Regenerative
30 Controller   CURTIS 1230
  Weight
31 Battery weight kg 190
32 Service weight with battery kg 1110
