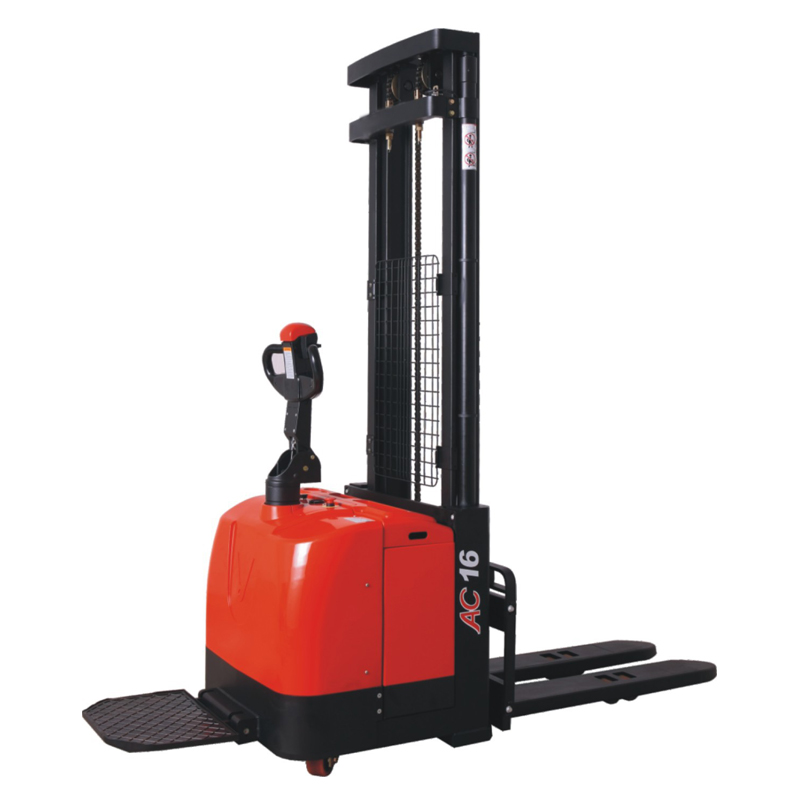

Name:CDD16-D930 CDD20-D930 power stacker
Click to view larger
  Feature:
Advantages:
Configuration and performance.
l  Electronic Power Steering system(EPS), light and low noise.
l  Two-way magnetic valve, three drop speed mode.
l  Drive unit floating bodies with patent design.
l  AC Driving system, No carton brush, maintenance free.
l  USA CURTIS driving controllers.
1.Electromagnetic, regenerative braking system.
2.Automatic lifting limit, proximity switch, long life.

Safety
1.Curve automatic deceleration devices, more safe.
2.Goods high position, vehicle automatic deceleration.
3.Stepless speed control system, safe and quiet.
4.Controller with Multiple automatic protection.
5.Emergency reversing device/Emergency brake switch.
6.High position automatic reduction device.
  Specifications:
  Feature Unit
1 Model   CDD16 CDD20
2 Configuration No.   D930 D930
3 Type   Narrow legs Narrow legs
4 Mast type    2-Stage STD 2-Stage STD
5 Load capacity kg 1600 2000
6 Load center mm 600 600
7 Wheel base mm 1325 1325
8 Operating type   Walkie  /  Stand On   Walkie  /  Stand On
  Wheels
9 Wheels type   PU PU
10 Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
  1/2/4 1/2/4
  Dimension
11
Standard lift height
mm 1400/2000/2500/3000/3300/3600/4000 1400/2000/2500/3000/3300/3600/4000
12 Lowered fork height mm 90 90
13 Fork size(length/width/thickness) mm 1150(1220)/185/55 1150(1220)/185/55
14 Overall length mm 2050/2470 2050/2470
15 Overall width mm 856 856
16 Max extend height mm 1900/2500/3000/3500/3800/4100/4500 1900/2500/3000/3500/3800/4100/4500
17 Mast lowered height mm 1185/1535/1765/1980/2135/2335/2500 1185/1535/1765/1980/2135/2335/2500
18 Min.Turning radius mm 1580/1990 1580/1990
19 Min.Aisle width for pallets 800×1200 mm 2180/2580 2180/2580
20 Min.Aisle width for pallets 1000×1200 mm 2210/2600 2210/2600
21 Min.ground clearance mm 30 30
  Performance
22 Travel speed,laden/unladen km/h 5/5 4/4.5
23 Lift speed,laden/unladen mm/s 130/230 90/170
24 Lowering speed,laden/unladen mm/s 130/230 80/170
25 Gradeability,laden/unladen % 5/7 5/7
  Electrical configuration
26 Drive motor / Lift motor /Steering motor  KW AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15
27 Battery voltage V 24 24
28 Battery capacity Ah 280 280
29 Brake   Electromagnetic / Regenerative Electromagnetic / Regenerative
30 Controller   CURTIS 1230 CURTIS 1230
  Weight
31 Battery weight kg 235 235
32 Service weight with battery kg 1240 1240
