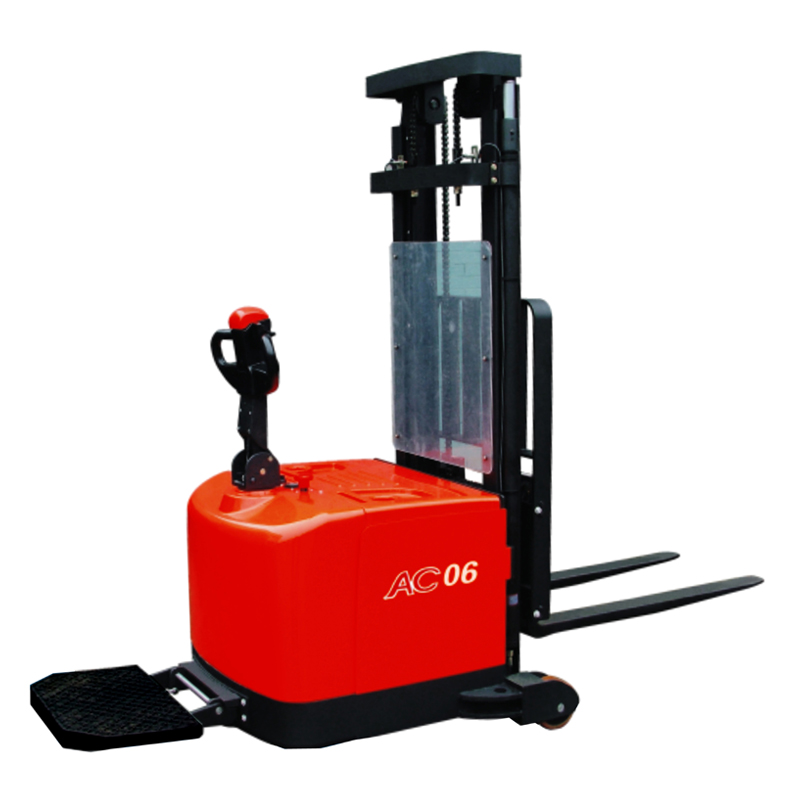

Name:CDD06-970 Counterbalanced Stacker
Click to view larger
  Feature:
Configuration And Performance
1.Short wheelbase and more flexible.
2.Electronic power steering system,light and low noise.
3.Two-way magnetic value,three drop speed mode.
4.AC Driving system,No carbon brush,maintenance free.
5.USA CURTIS driving controller.
6.Electromagnetic,regenerative braking system.
7.Automatic lifting limit,proximity switch,long life.
Safety
1.Curve automatic deceleration devices,more safe.
2.Goods high position,vehicle automatic deceleration.
3.Stepless speed control system,safe and quiet.
4.Controller with Multiple automatic protection.
5.Emergency reversing device/Emergency brake switch.
  Specifications:
Feature Unit
Model   CDD06
Configuration No.   970
Type    Counterbalanced
Mast type    2-Stage STD
Load capacity kg 600
Load center mm 500
Wheel base mm 794
Operating type   Walkie  /  Stand On
Wheels
Wheels type   PU
 Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
  1/0/2
Dimension
Standard lift height mm 1400/2000/2500/3000/3300
Max extend height mm 2400/3000/3500/4000/4300
Mast lowered height mm 1230/1580/1780/2030/2130
Lowered fork height mm 55
Fork size(length/width/thickness) mm 1070/100/40
Overall length mm 2120
Overall width mm 1015
Outside width between forks mm 200-660
Inside width between forks mm 0-460
Min.Turning radius mm 971
Min.Aisle width for pallets 800×1200 mm 2346/2822
Min.Aisle width for pallets 1000×1200 mm 2379/2844
Min.ground clearance mm 80
Performance
Travel speed,laden/unladen km/h 5/5.5
Lift speed,laden/unladen mm/s 130/230
Lowering speed,laden/unladen mm/s 130/230
Gradeability,laden/unladen % 5/7
Electrical configuration
Drive motor / Lift motor /Steering motor  KW AC1.5/DC3/DC0.15
Battery voltage V 24
Battery capacity Ah 270
Brake   Electromagnetic / Regenerative
Controller   CURTIS
 Weight
Battery weight kg 245
Service weight with battery kg 1770
