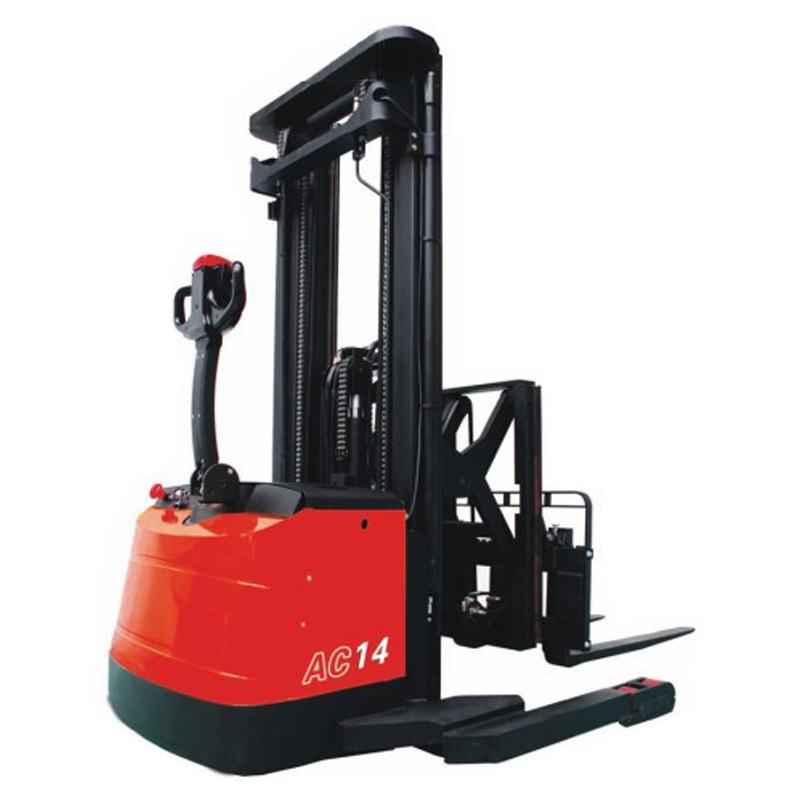

Name:CQDH13-850 CQDH14-850 reach stacker
Click to view larger
  Feature:

Advantages:
Configuration and preformance
1.Electronic power steering system,light and low noise.
2.Two-way magnetic valve,three drop speed mode.
3.Two-way magnetic valve,three drop speed mode.
4.AC Driving system.No carbon brush,maintenance free.
5.USA CURIT driving controller.
6.Lifting ,reach,tilt antomatic electric limit,delay motor and bettery life.
7.Equipped with double oil cylinder,fork tilt more smoothly.
8.Moon walk is STD,handle at any angle ,the vehicle goes straight.

Safety
1.Curve automatic decaleration devices,more safe.
2.Good high position,vehicle automatic deceleration.
3.Stepless control system.safe and quiet.
4.Conteoller with Multiple automatic protection.
5.Emergency reversing device/Emergency brake switch.

  Specifications:
  Feature Unit
1 Model   CQDH13 CQDH14
2 Configuration No   850 850
3 Type   Reach/Till,Side shifter Reach/Tilt
4 Mast type   3-Stage STD 3-Stage STD
5 Load capacity kg 1300 1400
6 Load center mm 500 500
7 Wheel base mm 1478 1478
8 Operating type   Walkie   Walkie
  Wheels
9 Wheels type   PU PU
10 Wheel quantity Driving wheel/Balance wheel/Bearing wheel   1/4 1/4
  Dimension
11 Reach distance  mm 0-550 0-550
12 Standard lift height mm 3800/4000/4500/5000/5500 3800/4000/4500/5000/5500
13 Max.extend height mm 4991/5191/5691/6191/6691 4991/5191/5691/6191/6691
14 Mast lowered height mm 1914/1281/2248/2415/2582 1914/1281/2248/2415/2582
15 Lowered fork height mm 55 55
16 fork size(length/width/thickness) mm 1070/100/40 1070/100/40
17 Overall length  mm 2225 2225
18 Overall width mm 1430 1430
19 Outside whdth between forks mm 1270/1420/1470 1270/1420/1470
20 Tilt of fork(F/B) Grad 4/3 4/3
21 Min.Turning radius mm 1566 1566
22 Min.Aisle width for pallets 800×1200 mm 2135 2135
23 Min.Aisle width for pallets 1000×1200 mm 2315 2315
24 Min.ground clearance mm 50 50
  Performance
25 Travel speed,laden/unladen km/h 3.5/4 3.5/4
26 Lift speed,laden/unladen mm/s 130/230 130/230
27 Lowering speed,laden/unladen mm/s 130/230 130/230
28 Gradeability,laden/unladen % 3/5 3/5
  Electrical configuration
29 Drive motor/Lift motor/Steering motor KW AC1.5/DC3.0/DC0.15 AC1.5/DC3.0/DC0.15
30 Battery voltage V 24 24
31 Battery capacity Ah 345 345
32 Brake   Elctromagnetic/Regenerative Elctromagnetic/Regenerative
33 Controller   CURTIS CURTIS
  Weight
34 Battery weight kg 300 300
35 Service weight with battery kg 2420 2400
